HYDRAULIC PISTON PUMPS

Mammot Hydraulics is proud of its heritage, with millions of products installed around the world and product lines which are more than twenty five years old.

In Hydraulic Pumps section, we manufacture of ; Bent Axis Hydraulic Pumps, Axial Piston Pumps, Straight Piston Pumps, High Pressure Piston Pumps, Hydraulic Gear Pumps, Dual Output Piston Pumps, Twin Flow Piston Pumps, Tandem Hydraulic Pumps, Industrial and Mobile Pumps, Aluminium Gear Pumps with Cast Iron Gear Pumps. Mainly we produce Fixed Displacement Hydraulic Pumps, and develop new Piston Pumps and Gear Pumps. All Details below about Hydraulic Pumps

Axial Piston Pumps

DIN ISO 14 NF, 8x32x36, 4 Bolt, Axial Piston Pumps.

Versions / Sizes, 25cc 35cc 45cc 55cc 65cc 80cc 90cc 110cc.

6 Spline or 8 Spline Shaft design. 350-400 bar Working Pressure. For use in mobile & industrial and stationary applications areas.

The pump drive shaft bearings are designed to give the service life expected in these areas of operation.





High Pressure Piston Pumps

SAE Design, Keyed Shaft, 2 Bolt, High Pressure Piston Pumps.

600-700 bar High Pressure,
2cc, 4cc, 6cc, 12cc, 15cc, 22cc, 35cc, 45cc.

For use in mobile & industrial and stationary applications areas.
The pump drive shaft bearings are designed to give the service life expected in these areas of operation.

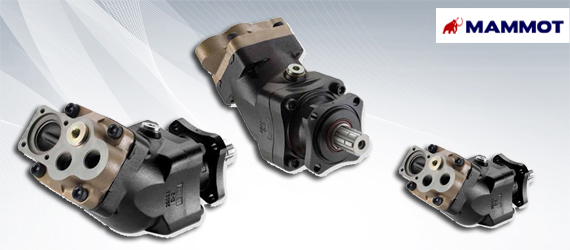

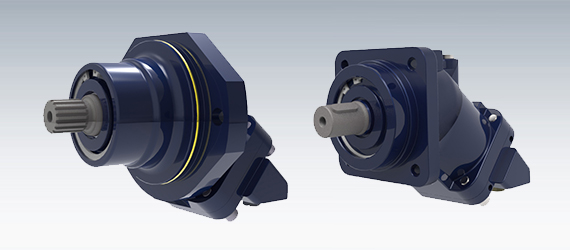

Bent Axis Piston Pumps

DIN-ISO-SAE Mounting Flange, From 5cc to 180cc all size of Bent Axis Pumps.

5cc to 130cc, Interchangeable with other International Brands.

Advantages; Compact Design, Economical Conception, High Rotating Speeds, High Output Pressure, Reduced Noise Level, Smaller Installation Dimensions, One Piece Pistons with Piston Rings, Special Suction Fittings & Accesories, Simple Change of Direction of Rotation..

Versions; 25cc 35cc 45cc 55cc 65cc 80cc 90cc 110cc.





Straight Piston Pumps

Fixed displacement axial piston pumps and motors swash plate design for open circuit applications.

An electrically controlled valve can be fitted on the pump and an electronic board controls the flow and the speed of the powered motor.

27cc to 48cc all Size. The design is extremely compact and it can integrate many functions. Possibility to have on the pressure line a three-position electrically controlled valve with relief valve. Possibility to mount an auxiliary gear pump with common suction Internal drain.





Dual Output Piston Pumps

The range of fixed displacement dual flow pumps D and DD comprises 10 different sizes from 20/20 cm3 up to 76/76 cm3.

Versions / Sizes, 56/26 , 76/76 , 20/20 28/28 40/20 35/35 56/28 46/46 53/53 64/32.

The DD dual flow pumps are of bent-axis design, the DD pumps are of inline design with swash plate. Optional by-pass valve.

Mammot dual flow pump is ideal for vehicles which require two different flows.





Twin Flow Piston Pumps

Of unique design, the TW pumps offer a robust solution with long service life for high pressure requirements in truck hydraulics.

Versions / Sizes, 75/40 , 32/32, 40/40, 55-55, 67-67, 55-33, 67-40.

Combining automatic dual direction of rotation, high output pressure, (500 bar peak pressure), and insensitivity to slightly degraded fluids, these pumps are particularly well suited to the harshest environments. Twin flow from 2x32 cc/rpm to 2x 75cc/rpm. Two different flows: 75-40 cc/rpm & 67-40 cc/rpm.

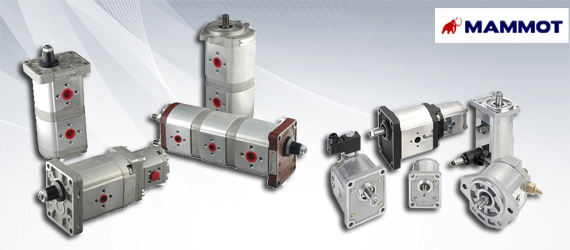

Hydraulic Tandem Pumps

Any size of Gear Pumps and Piston Pumps Tandem or Double installed versions..

Versions / Sizes, 5cc 12cc 18cc 25cc 32cc 40cc 50cc 56cc 63cc 80cc 108cc 130cc.

TD Tandem pumps consits of two single pumps mounted on a common drive shaft. Hydraulically, the two pumps operate independently of one another but they share a common suction port in the pump´s centre section. The larger pump of the combination is situated at the shaft end (the drive side). With equal frame sizes, the pump with the larger displacement is situated at the drive side.

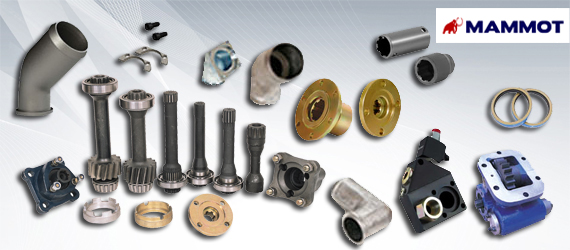

Inlet Fittings, Accessories

Any size of Gear Pumps and Piston Pumps available Inlet Fittings with Accessories..

Advantages; Mammot Hydraulics offering economy costs of Inlet Fittings, Spare Parts and Accessories possible in our manufacture plants.

We supporting wide range of solutions via on time delivery. O-Rings, Seals, Piston and Ring Kits, Barrel, Shaft, Cover, Body, Bearings, Fittings, Screw and Plugs supporting, Education and Videos and more advantages already. For more details, please e-mail to us or fulfill our Contact Form in Contact Page...
